PCD8544 (3310 LCD screen)

Pins:

8-LCD with DS1/DS3

1.44" TFT LCD Display 128x128

Pins:

   TFT   |     AVR

LED         3V3 (or PWM)

SCK         SCL pin

SDA         MOSI pin

A0(DC/RS)   whatever

RESET       whatever

CS          whatever

GND         GND

VCC (J2)    3V3

Library: https://github.com/sumotoy/TFT_ILI9163C/

Sumotoy developped his library with a chinese TFT who had an offset (see his notes). Mine didn't have such offset and when using his library, my screen displayed 32 lines of garbage:

To correct this the header must be changed: either create a new type of screen (along with the already coded __144_RED_PCB__ and __22_RED_PCB__) with an __OFFSET of 0, or change the __OFFSET value inside the #if defined(__144_RED_PCB__) to 0.

AVR pins

Pins of some ICs

Best pictures are from the MCUdude's cores: https://github.com/MCUdude

ATtiny13: https://github.com/MCUdude/MicroCore

ATmega328 variants: https://github.com/MCUdude/MiniCore

ATmega8535 variants: https://github.com/MCUdude/MightyCore

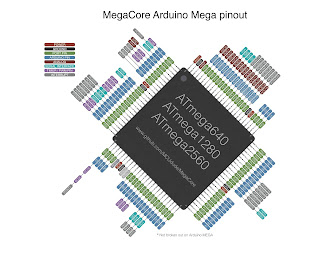

ATmega640 variants: https://github.com/MCUdude/MegaCore

4 * 7 segments

Pins:

1	Segment E
2	Segment D
3	Decimal point
4	Segment C
5	Segment G
6	Digit 4
7	Segment B
8	Digit 3
9	Digit 2
10	Segment F
11	Segment A
12	Digit 1

LCD screen HD44780

Charset:
